    Product Description

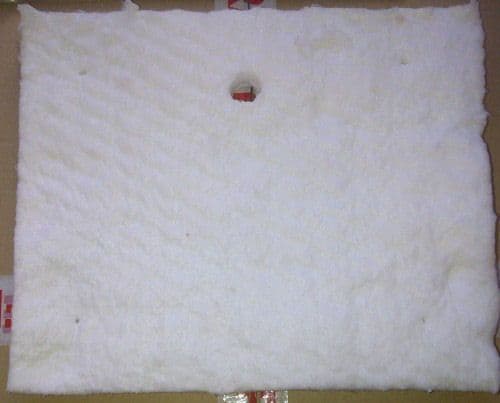

    This door back insulation fits the Rayburn 200 Series (Royal), 300 Series (Nouvelle all fuels) and the Supreme. Insulation is 350mm x 290mm x 30mm thick and can easily be trimmed with sharp scissors if required.

    The original slag wool insulation deteriorates with time and becomes less effective. This new ceramic blanket is heat proof to 1250oC and is a much better insulation than the old material.

    It is fitted in place by simply unscrewing the 4 x 1/4 inch bolts and removing the old insulation. You then slightly increase the thermodial cut out (easy by hand) and push the new insulation into place. Finally refit the door back and screw up. Job done!

    PLEASE NOTE The new door back pictured in the photo below is NOT included and is merely shown for illustrative purposes. We do sell these new door backs here.


    Specifications

    Weight
    0.02kg

    Rayburn 200 Series, 300 Series and Supreme Roast Oven Door Back Insulation
